PK

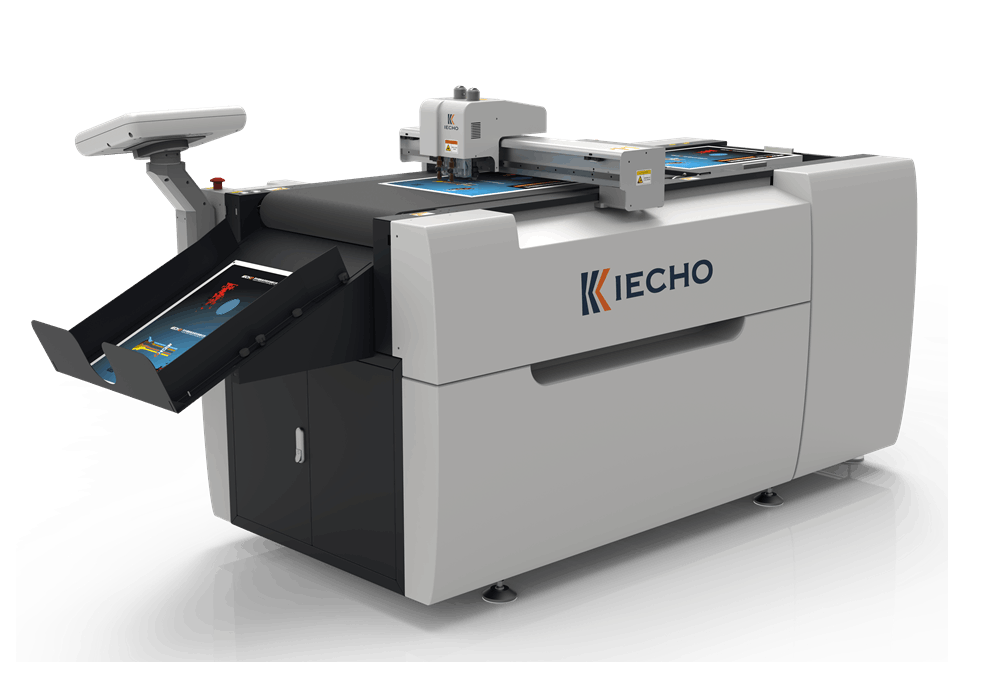

PK automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform. Equipped with various of tools, it can quickly and precisely make through cutting, half cutting, creasing and marking. It is suitable for sample making and short-run customized production for Signs, Printing and Packaging industries. It is a cost-effective smart equipment that meets all your creative processing.
Product Brochure
Parameter
| Cutting Head Tyoe | PK Plus | PKPro Max | ||
| Machine Type | PK0604 Plus | PK0705 Plus | PK1209 Pro Max | |
| Cutting Area(L*w) | 600mm x 400mm | 750mm x 530mm | 1200mm x 900mm | |
| Flooring Area(L*W*H) | 2350mm x 900mm x 1150mm | 2350mm x 1000mm x 1150mm | 3200mm×1 500mm×11 50mm | |
| Cutting TOOL | Oscillating tool, Universal Cutting Tool,Creasing Wheel, Kiss cut tool | Oscillating tool, Universal Cutting Tool, Creasing Wheel, Kiss cut tool, Drag knife |
||

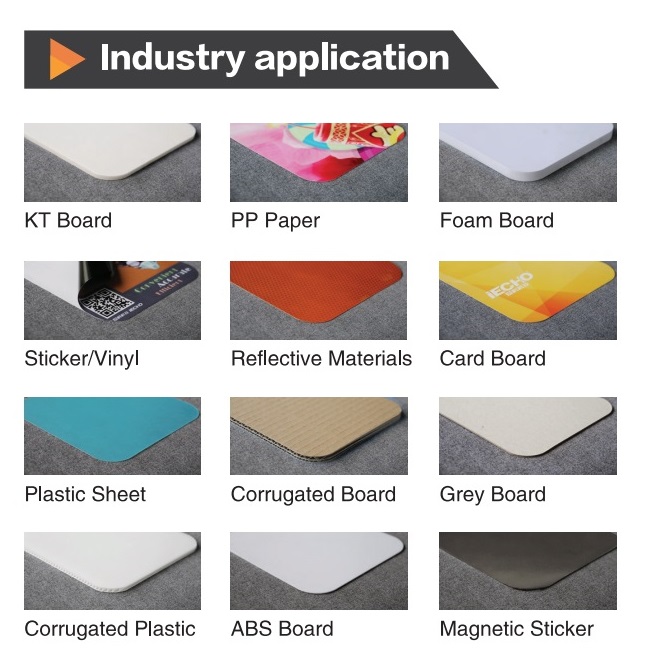

| Cutting Material | KT Board, PP Paper,Foam Boad, Sticker, Reflective Material, Card Board, Plastic Sheet, Corrugated Board, Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker | |||
| Cutting Thickness | <6mm | ≤10mm | ||
| Media | Vacuum System | Vacuum System | ||
| Max Cutting Speed | 1500mm/s | 1500mm/s | ||
| Cutting Accuracy | ±0.1mm | ±0.1mm | ||
| Data Formal | PLT、DXF、HP/GL、EPS | PLT、DXF、HP/GL、PDF、EPS | ||
| Voltage | 220V±10%50HZ | 220v±10%50Hz | ||
| Power | 4KW | 6.5kw | ||
