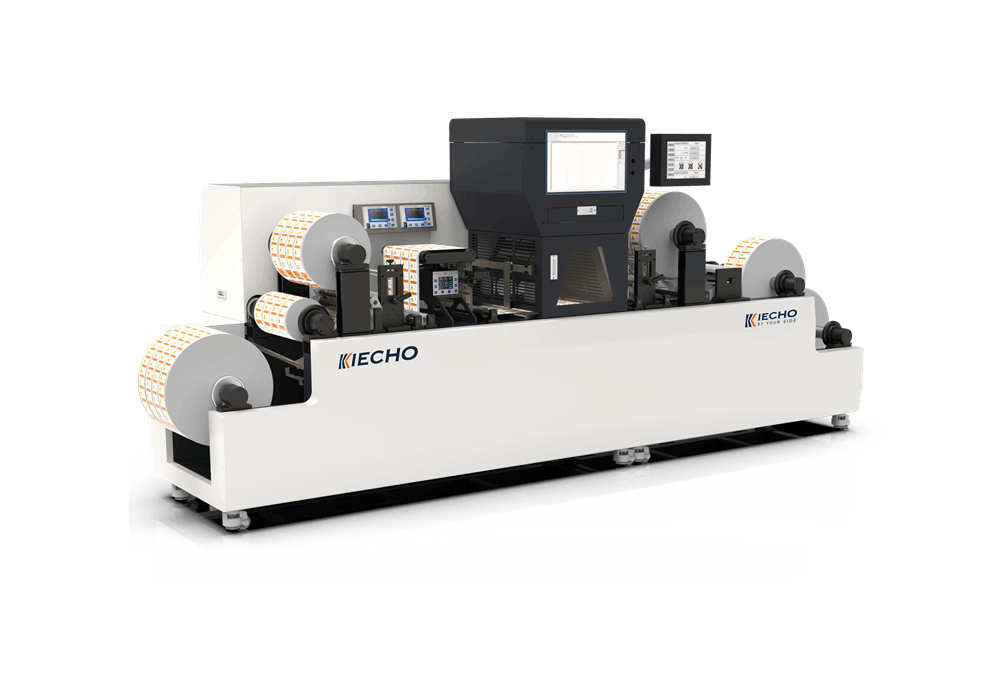

Laser Die Cutting (LCT)
IECHO LCT 350 laser die-cutting machine is a high-performance digital laser processing platform integrating automatic feeding, automatic deviation correction, laser flying cutting, and automatic waste removal. The platform is suitable for different processing modes such as roll-to-roll, roll-to-sheet, sheet-to-sheet, etc. It is mainly used in the process of full cutting, half cutting, flying line, punching and waste removal of non-metallic materials such as sticker, PP, PVC, cardboard and coated paper. The platform does not require cutting die, and uses electronic files import to cut, providing a better and faster solution for small orders and shorter lead times.
Product BrochureMaterial shortage alarm
Feeding end is detected by a photoelectric ’’ sensor, and the machine automatically stops running and alarms when there is no paper.
High speed cutting
The cutting laser line speed can reach 8 000 mm/s, and the mdximum feeding speed can reach 90 m/min.
Simple automation
CAM/CAD computer control only requires the input of cutting files in the software. Chanpe the cut shape on the fly.
Quick switch
No need for a mold, you can cut your design product at any time. No need to wait.
QR code scanning supports dynamic image change
The best partner for digital printing presses.
Flexible and Multipurpose
Full cut, half cut, perforated, engraved, marked, multiple functions.
Parameter
| Machine type | LCT350 |
| Maximum feeding speed | 1500mm/s |
| Die cutting accuracy | 土0.1mm |
| Maximum cutting width | 350mm |
| Maximum cutting length | Unlimited |
| Maximum material width | 390mm |
| Maximum outer diameter | 700mm |
| Graphic format supported | Al/BMP /PLT/DXF /Ds /PDF |
| Working environment | 15-40°℃ |
| Appearance size(L×W×H) | 3950mm×1350mm×2100mm |
| Equipment weight | 2000kg |
| Power supply | 380V 3P 50Hz |
| Air pressure | 0.4Mpa |
| Dimensions of the chiller | 550mm*500mm*970mm |
| Laser power | 300w |
| chiller power | 5.48KW |
| Negative pressure suction system power |
0.4KW |
