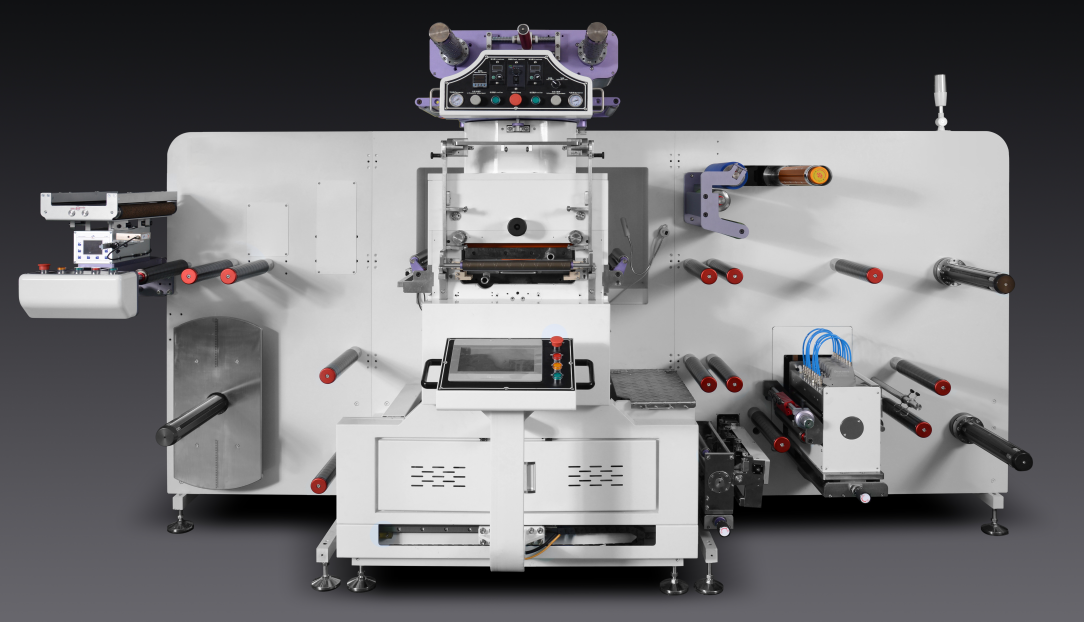

Flatbed Die Cutting with Hot Stampling (Foiling) (PFDH)
Product BrochureMain technical parameter:
| Unwind unit | |
| Max. Web Width | 370mm |
| Max. Unwind Diameter | 800mm |
| Flat bed hot stamping unit | |
| Max. paper width | 360mm |
| Max. paper length | 360mm |
| Max. hot stamping area | 360*360mm |
| Max. speed | 200 times/min hot stamping
450 times/min die cut |
| Plate height | 7mm-23mm |
| Pad thickness | 0.5mm-3mm |
| Hot stamping accuracy: | ±0.15mm |
| Rotary hot stamping head | Yes |
| Rewind unit | |
| Max. Upper Rewind Diameter | 600mm |
| Max. Lower Rewind Diameter | 600mm |
| Air Supply | 100 psi |
| Rating Voltage | 3PH+ N+ PE |
| Machine Weight | 4.5T |
Machine units:
Unwind & web-guide
Single 3″ unwind shaft with servo driven.
Automatically stop at setting diameter or meters.
Electronic web guiding system and ultrasonic web guide sensor for keeping paper feeding smoothly and accurately.

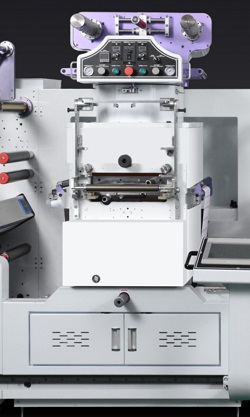

Flat bed Hot stamping Unit
Servo driven. High pressure. Stamping head can 90°rotate, automatic or manual registration system. with rotary head and differentiated mandrel

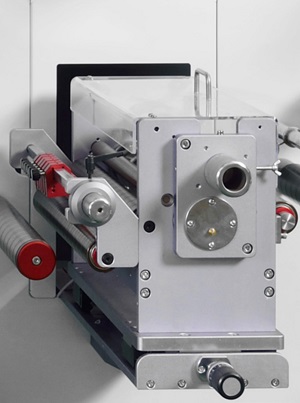

Shear/Razor knife slitting (5 knives)
Servo driven crush/razor knife slitting, easy to operate.

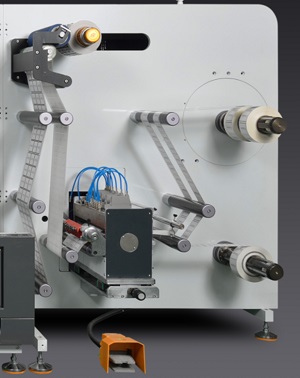

Dual Rewinds Unit
Dual 3″ / 76mm rewind shaft with servo driven, Maximum rewind diameter 600mm.
Automatic tension controller.

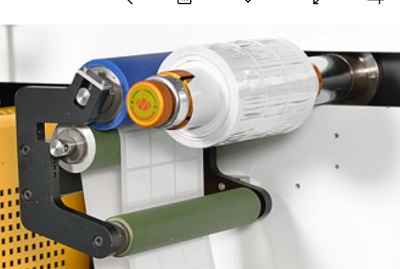

Matrix Removal
Snowball matrix rewinding, more steady and easy to rewind.
Maximum matrix removal rewind diameter can reach 600mm.
Related products
Flatbed Diecutting (PFD)
Main Features:-
- This is for sticker die- cutting .
- This machine adopts flat-bed mode,Double row high load imported bearings,independent oil supply motor,making sure the pressure stability.
- All servo motor driving for the whole machine.
- Optional:Pneumatic paper loading ,flexo printing ,cold stamping ,full-cut,rotary sheeter and so on.
Glueless Auto Turret Rewinder (PGTR)
PGTR Automatic Glueless Turret Rewinder:
- Turret rewinding machine is equipped with automatic paper tube, which can realize rewinding online without stopping, and connect rotary die-cutting machine, flexo printer and other equipment.
- The rewinding machine is equipped with shear knife slitting unit with 8 knives.
- The rewinding machine is equipped with a 1 inch, 1.5 inch, 3 inch quick-release pneumatic shaft for life free of maintenance. When the rewind is replaced with different sizes of shaft, there is no need for manual mechanical adjustment system, which machine can automatically adjust the rewind size to reduce manual labor force and realize intelligent production.
- The rewinding machine is equipped with a paper core loading system, you can put paper cores into the loader, it will automatic loading cores.
- The rewinding products can be easily separated from the paper tube and will not cause damage to the printing head of the printer cartridge to the end customers. When you don’t use the turret rewind unit, you can just move them away, every friendly and flexible.
Multifunctional Label finishing Printer (PMFM)

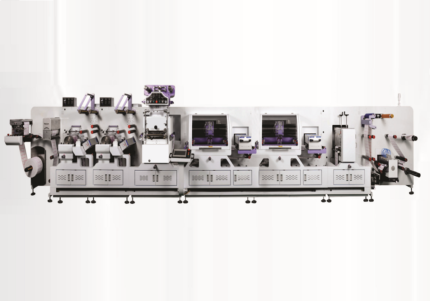

PMFM 330/420/520 Integrated Multi-Functional Digital Finishing System
Machine features:
- Modular design
- Full servo control of the whole machine
- Intermittent screen-printing unit
- Intermittent flatbed hot stamp and emboss unit, which can be 90° rotated
- Optional: positioning hologram
- Intermittent flexo printing unit can do flexo printing, cold foil, varnish, lamination,
Optional: positioning lamination
- Drying system optional: UV or LED-UV
- Intermittent flexo unit can switch between full and semi-rotary mode
- Intermittent die-cutting unit can switch between full and semi-rotary mode,
optional: Gap master
- Standard: Shear/Razor knife, Optional: Crush knife; Auto slitting, automatic back
cutting
- Double servo rewind shaft, can rewind forward and reverse
- Online monitor and diagnosis
- Optional: corona and dust removal device; IML function

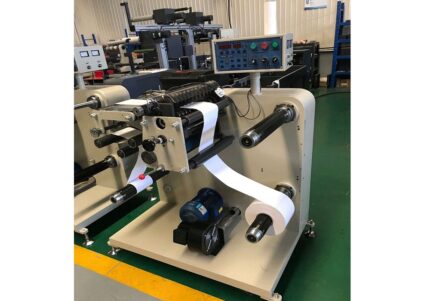

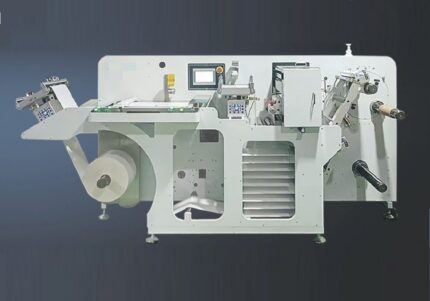

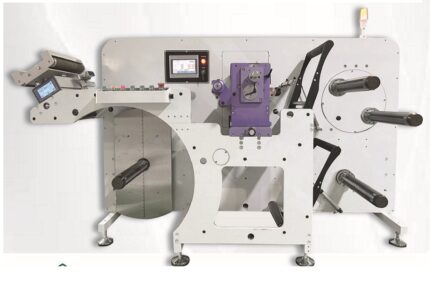

Slitter with turret rewinder (PLSR2)
Machine features:
- Servo driven unwinder
- Precise unwind tension control
- Reel end detector
- Electronic web guide with ultrasonic web sensor
- Servo driven precision slitting cassette
- Precise slitting tension control
- Quick exchange cassette for setup outside the rewinder
- During production to reduce setup time and waste
- Trim waste extraction fan
- Easy access splice table with web clamps
- Semi-automatic, servo driven turret rewinder
- Automatic slow down, stop & turn at selected reel diameter or
- Label count for significant increase in productivity
- Exchangeable shafts for various diameters
- User friendly 7” touch screen HMI, job archive (>500 settings) to reduce setup time
and waste, remote service access by modem
