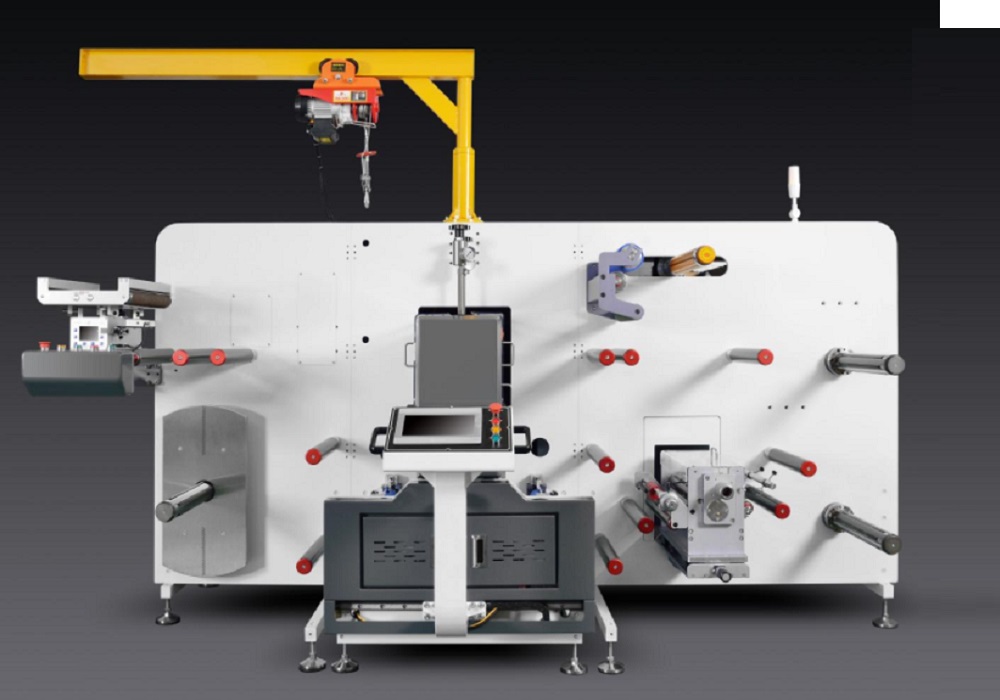

Rotary Diecutting with conveyor & Stacker (PRD)
Product BrochureMachine Technical Specifications:
| Max. Web Width | 330mm |
| Max. Unwind Diameter | 800mm |
| Max. Matrix Rewind Diameter | 600mm |
| Max. Rewind Diameter | 600mm |
| Max. Turret Rewind Diameter | 400mm |
| Rewind shaft | 3 inch |
| Max. Die Cutting Width | 320mm |
| Magnetic Cylinder | 80T-230T
Machine with 224T |
| Repeat length （semi rotary） | 50-700mm |
| Max. Die Cutting Speed | 150m/min (Full rotary)
90m/min (Semi rotary) |
| Die Cutting Precision Accuracy | ±0.15mm |
| Slitting mode | Shear/Razor knife, 10 sets |
| Air Supply | 100 psi |
| Rating Voltage | 3PH+ N+ PE |
| Total Power | 8KW |
| Machine Weight | 2.5T |
| Machine dimension | 2400mm*1200mm*1500mm |
Machine Units

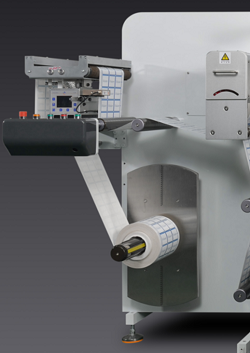

Unwind &Web guide
Single 3″ unwind shaft with servo driven.
Automatically stop at setting diameter or meters.
Electronic web guiding system and ultrasonic web guide sensor for keeping paper feeding smoothly and accurately.

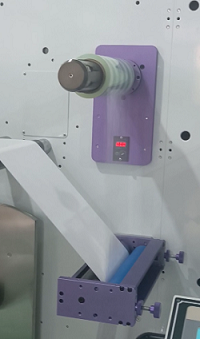

Dry Laminate unit
Magnetic powder clutch unwind and manual adjust laminate unit.

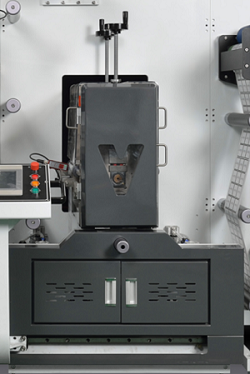

Semi-rotary Die cutting Unit
Servo driven. Magnetic cylinders. Heavy duty frame, accessible design. High precision,
High efficiency. Automatic or manual registration System.
Semi-rotary mode, can be exchanged between full rotary and semi rotary, save your die cutting tool cost, improve job efficiency.
Special magnetic cylinder 224T.
Chinese brand gap master

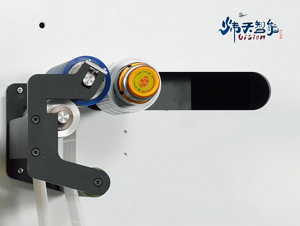

Matrix Removal Unit
Snowball matrix rewinding, more steady and easy to rewind. Servo motor driven.
Maximum matrix removal rewind diameter can reach 600mm.

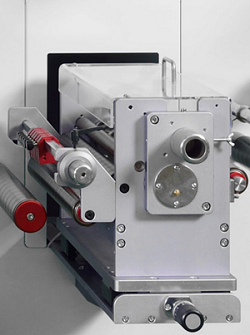

Shear / Razor knife slitting (10 knives)
Shear knife slitting, easy to operate.
Razor knife slitting, good for film and paper material with linear.

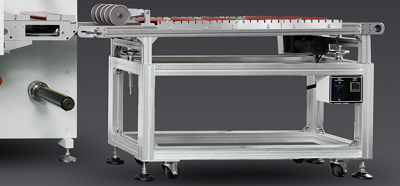

Belt Conveyor
Suction belt
Motor control conveyor
Speed adjustable
Related products
Flatbed Diecutting (PFD)
Main Features:-
- This is for sticker die- cutting .
- This machine adopts flat-bed mode,Double row high load imported bearings,independent oil supply motor,making sure the pressure stability.
- All servo motor driving for the whole machine.
- Optional:Pneumatic paper loading ,flexo printing ,cold stamping ,full-cut,rotary sheeter and so on.
Glueless Auto Turret Rewinder (PGTR)
PGTR Automatic Glueless Turret Rewinder:
- Turret rewinding machine is equipped with automatic paper tube, which can realize rewinding online without stopping, and connect rotary die-cutting machine, flexo printer and other equipment.
- The rewinding machine is equipped with shear knife slitting unit with 8 knives.
- The rewinding machine is equipped with a 1 inch, 1.5 inch, 3 inch quick-release pneumatic shaft for life free of maintenance. When the rewind is replaced with different sizes of shaft, there is no need for manual mechanical adjustment system, which machine can automatically adjust the rewind size to reduce manual labor force and realize intelligent production.
- The rewinding machine is equipped with a paper core loading system, you can put paper cores into the loader, it will automatic loading cores.
- The rewinding products can be easily separated from the paper tube and will not cause damage to the printing head of the printer cartridge to the end customers. When you don’t use the turret rewind unit, you can just move them away, every friendly and flexible.
Multifunctional Label finishing Printer (PMFM)
PMFM 330/420/520 Integrated Multi-Functional Digital Finishing System
Machine features:
- Modular design
- Full servo control of the whole machine
- Intermittent screen-printing unit
- Intermittent flatbed hot stamp and emboss unit, which can be 90° rotated
- Optional: positioning hologram
- Intermittent flexo printing unit can do flexo printing, cold foil, varnish, lamination,
Optional: positioning lamination
- Drying system optional: UV or LED-UV
- Intermittent flexo unit can switch between full and semi-rotary mode
- Intermittent die-cutting unit can switch between full and semi-rotary mode,
optional: Gap master
- Standard: Shear/Razor knife, Optional: Crush knife; Auto slitting, automatic back
cutting
- Double servo rewind shaft, can rewind forward and reverse
- Online monitor and diagnosis
- Optional: corona and dust removal device; IML function
Slitter with turret rewinder (PLSR2)
Machine features:
- Servo driven unwinder
- Precise unwind tension control
- Reel end detector
- Electronic web guide with ultrasonic web sensor
- Servo driven precision slitting cassette
- Precise slitting tension control
- Quick exchange cassette for setup outside the rewinder
- During production to reduce setup time and waste
- Trim waste extraction fan
- Easy access splice table with web clamps
- Semi-automatic, servo driven turret rewinder
- Automatic slow down, stop & turn at selected reel diameter or
- Label count for significant increase in productivity
- Exchangeable shafts for various diameters
- User friendly 7” touch screen HMI, job archive (>500 settings) to reduce setup time
and waste, remote service access by modem
