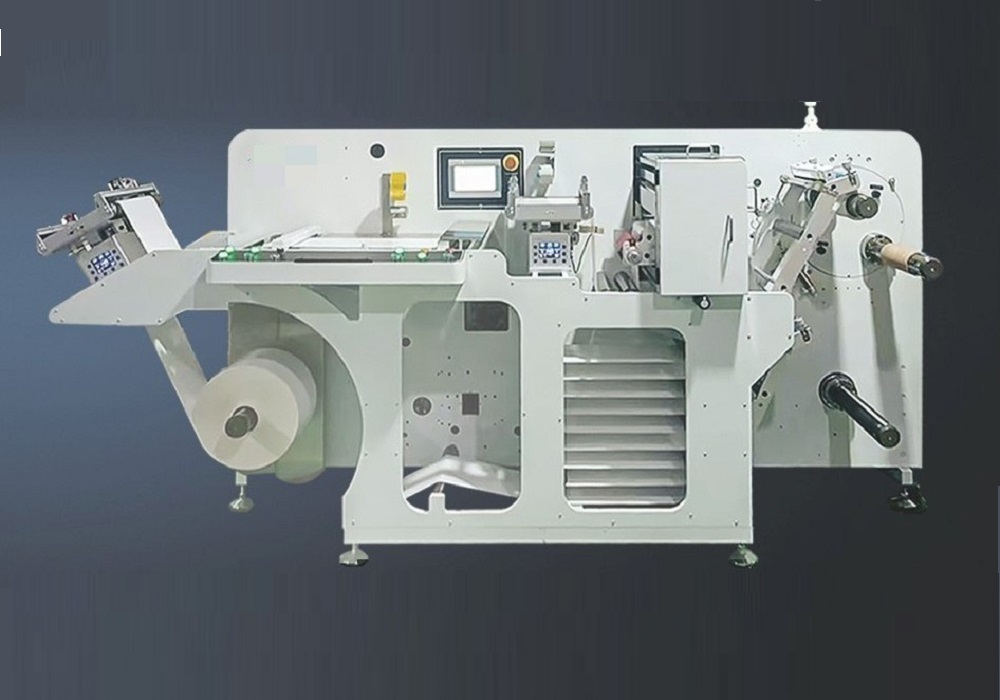

Slitter with Dual Rewinder & Inspection (PLSR2)
Product BrochureMachine Technical Specifications:
| P-SLR2 Technical Specifications | |
| Max. Web Width | 450mm |
| Max. Unwind Diameter | 800mm |
| Max. Upper Rewind Diameter | 600mm |
| Max. Lower Rewind Diameter | 600mm |
| Max. Mechanical Speed | 300m/min |
| Power Consumption | 10kw |
| Air Supply | 100 psi |
| Power Supply | 3PH+ N+ PE |
| Packing Weight | 2.2T |
| Packing size(mm) | 2800L*1700W*1600H |
| HS code | 8441100000 |
Machine Units:
Unwind & Web guide
Single 3″ unwind shaft with servo driven.
Automatically stop at setting diameter or meters.
Electronic web guiding system and ultrasonic web guide sensor for keeping paper feeding smoothly and accurately.
Inspection Camera position
Machine can apply Luster, BST, AVT etc. camera systems
Inspection table
Easy for changing the defected label, the machine will stop at the middle of the inspection table when the defected label is found, easy operation.
Slitting unit
Servo control shear knife adjust. 10 knives totally.
Razor knife is good for film material.
Rewind Unit
Dual 3″ / 76mm rewind shaft with servo driven, Maximum rewind diameter 600mm.
Both rewind are with pneumatic cylinder control LAY-on rolls and clamps.
Automatic tension controller.
Option: top rewind semi-turret.
