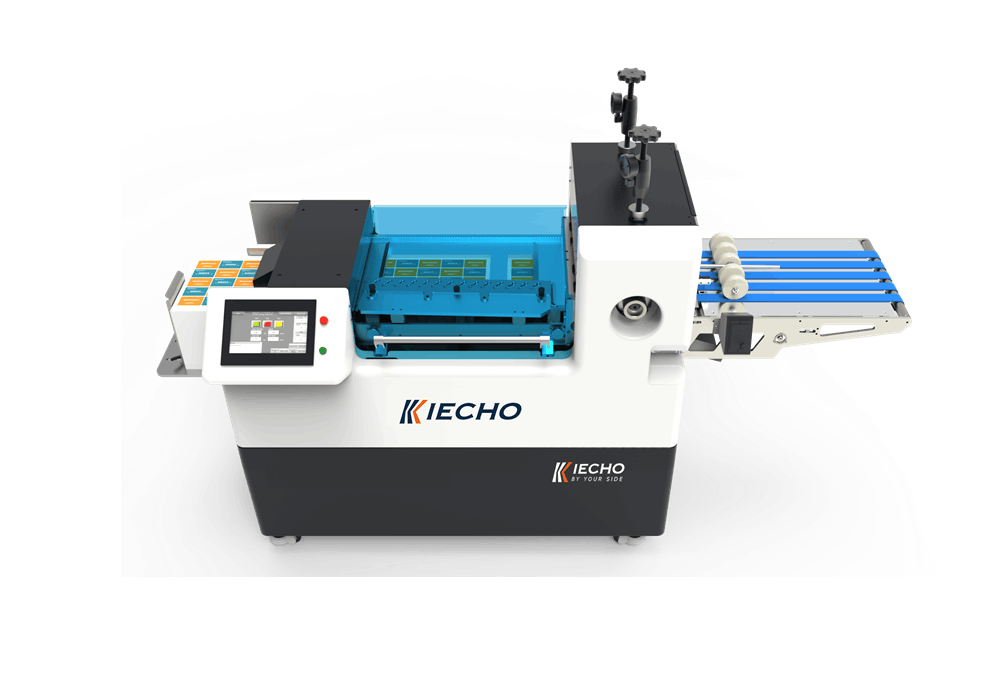

Magnetic Rotary Die Cutting ( MCT)
With a small floor space and easy operation, the MCT series Rotary Die Cutter is an intelligent die-cutting machine for small batch and multiple repeat production, widely used for self-adhesive stickers, wine labels, garment hangtags, playing cards and other products in printing & packaging, clothing and electronics industries. With a fish-scale feeding platform, automatic deflection and precise alignment, the sheet passes quickly through the high-strength rolls equipped with magnetic blades and completes a variety of die-cutting processes such as full-cutting, half-cutting, perforating, creasing and easy-tear lines (toothed lines).
Product BrochureParameter
| Size(mm) | 2420mm ×840mm × 1650mm |
| Weight (KG) | 1000kg |
| Maximum paper size(mm) | 508mm×355mm |
| Minimum paper size(mm) | 280mm x210mm |
| Maximum die plate size(mm) | 350mm ×500mm |
| Minimum die plate size(mm) | 280mm ×210mm |
| Die plate thickness(mm) | 0.96mm |
| Die cutting accuracy(mm) | ≤0.2mm |
| Maximum die cutting speed | 5000 sheets/hour |
| Maximum indentation thickness(mm) | 0.2mm |
| Paper weight(g) | 70-400g |
| Loading table capacity (sheets) | 1200sheets |
| Loading table capacity (Thickness/mm) | 250mm |
| Minimum width of waste discharge(mm) | 4mm |
| Rated voltage(v) | 220v |
| Power rating(kw) | 6.5kw |
| Mould Type | Rotary die |
| Atmospheric pressure (Mpa) | 0.6Mpa |
