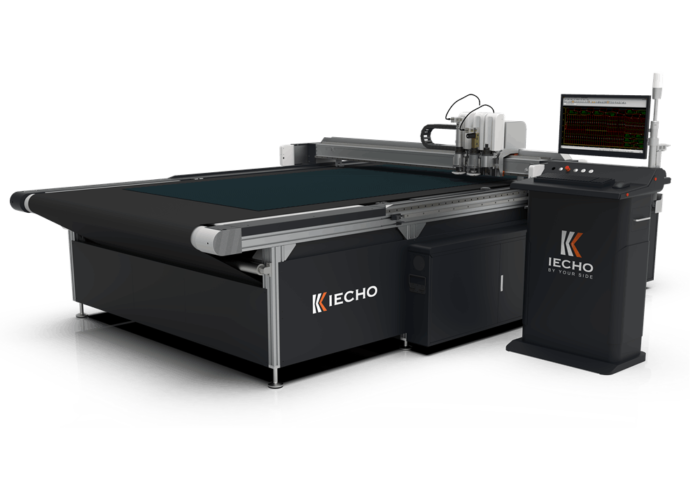

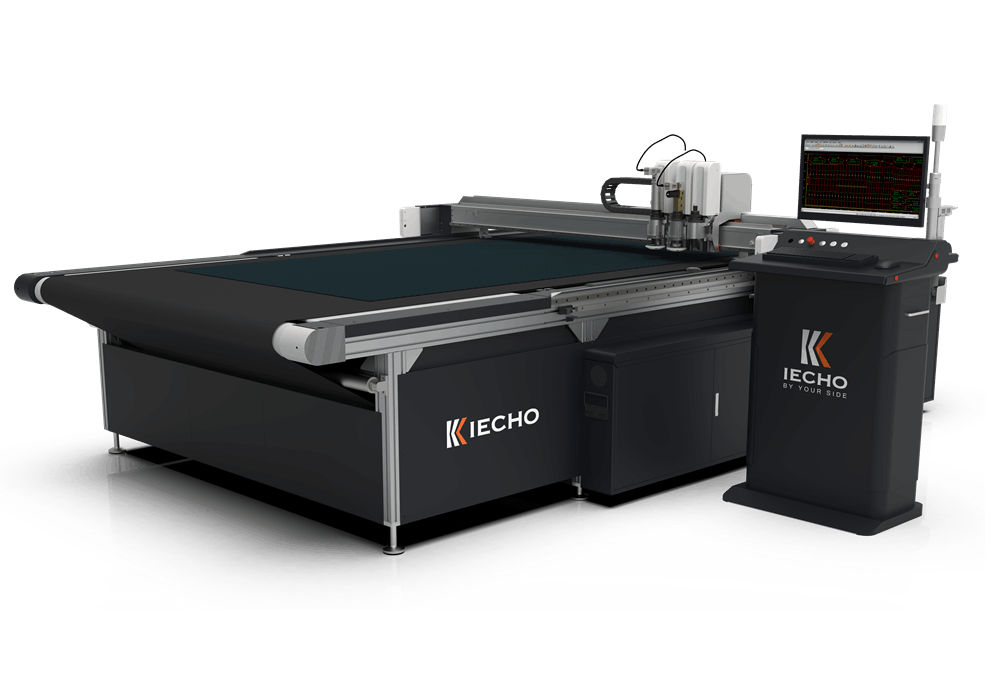

TK4S Large Format Cutting System provides best choice for multi-industries automatic processing. Its system can be precisely used for full cutting, half cutting, engraving, creasing, grooving and marking. Meanwhile, precise cutting performance could meet your large format requirement. User-friendly operating system will show you a perfect processing results.
TK4S
ADVANTAGES
- AKI System
- X Axis Two Motors
- Diversified Cutting Tools
- Dual Beams Cutting System
- Continuous Cutting
- Flexible Working Area
- Automatic Camera Positioning
- Higher Efficiency
- Safety Features
- Motion Control System
- Aviation Aluminum Honeycomb Panel
Description
Parameter
| Vacuum Pump | 1-2 Units 7.5kw | 2-3 Units 7.5kw | 3-4 Units 7.5kw |
| Beam | Single Beam | Dual Beams (Optional) | |
| MAX.Speed | 1500mm/s | ||
| Cutting Accuracy | 0.1mm | ||
| Thickness | 50mm | ||
| Data Format | DXF、HPGL、PLT、PDF、ISO、AI、PS、EPS、TSK、BRG、XML | ||
| lnterface | Serial Port | ||
| Media | Vacuum System | ||
| Power | Single phase 220V/50HZ Three phase 220V/380V/50HZ-60HZ | ||
| Operating Environment | Temperature 0℃-40℃ Humidity 20%-80%RH | ||
Size
| Length Width | 2500mm | 3500mm | 5500mm | Customized Size |
| 1600mm | TK4S-2516 Cutting Area: 2500mmx1600mm Floor Area: 3300mmx2300mm | TK4S-3516 Cutting Area:3500mmx1600mm Floor Area:430Ommx22300mm | TK4S-5516 CuttlingArea:5500mmx1600mm Floor Area:6300mmx2300mm | Based on the standard size of TK4s, can customize the machine according to customer’s special requirements. |
| 2100mm | TK4S-2521 Cutting Area:2500mmx210omm Floor Area:3300mmx2900mm | TK4S-3521 CuttingArea:3500mmx2100mm Floor Area: 430Ommx290Omm | TK4S-5521 CuttingArea:5500mmx2100mm Floor Area:6300mmx2900mm | |
| 3200mm | TK4S-2532 Cutting Area: 2500mmx3200mm Floor Area: 3300mmx4000mm | TK4S-3532 Cutting Area:35oommx3200mm Floor Area: 4300mmx4000mm | TK4S-5532 CuttingArea:5500mmx3200mm Floor Area: 6300mmx4000mm | |
| Other Sizes | TK4S-25265 (L*W)2500mm×2650mm Cutting Area: 2500mmx2650mm Floor Area:3891mm x3552mm | TK4S-1516(L*W)1500mm×1600mm CuttingArea:1500mmx1600mm Floor Area:2340mm x 2452mm | ||
Shipping & Delivery
