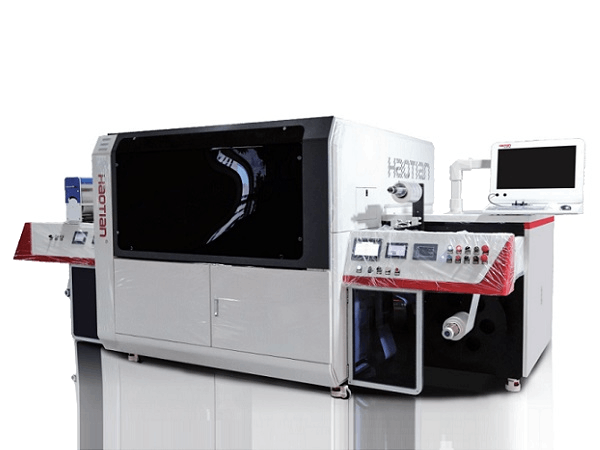

Digital UV Inkjet Label Printing Press (HTS-220/330-4~9C)
1.) 4-9 sets of printing modules
A variety of printing modes are available . It can be equipped with 8 9 printing modules, and a variety of printing Processes can be realized. Easy to achieve transparent non-transparent materi aIs full color printing support Multi-plate queuing, plateless printing one print, variable data and other functions.
2.) Multi-spot color mixed printing mode
The broader color gamut supports over 9096 of pantone colors The multi-spot color mixed printing mode Makes the printing color gamut more extensive, further expands the printing scope, reduces the cost
Of ink reduces the printing process and greatly improves the efficiency.
3.) High speed/high precision/printing headHigh quality | high profile | long life
Using the world’s most high-speed and high-precision industria I on-demand piezo nozzle, the speed can Reach 50M/min, the accuracy can reach 600x1200d pi, with high quality, high precision, long service life And other characteristics.
4.) Material adaptabilityReduce processes | Reduce costs
Printing is non-contact inkjet mode, no need to make coating when printing material Adaptability paper, PVC, PET, PE, BOPP, gold and silver foil and other materiaIs The surface does not need to be pre-coated reducing the process And reducing the cost .
| Model | HTS-220/330-4- 9C | Thickness of printing stock | Roll materialsiu0.01-0.8mm. |
| Printing speed/min(max) | 50m/min | Roll diameter of charging or discharging | Maximum diameter: 650mm. |
| Temperature range | 16-32°C | Machine size (L*W*H) | 4300mm x 2210m x 1980mm. |
| Storage temparure for ink | 16-32°C | input power | Three-phase 380VAC 50/60HZ 10KW. |
| Humidty range | 40-60% | Accepted filr format | PDF, JPEG, BMP and other common file formats. |
| Input gas supply | 0.6-0.8 Mp | Material type | Coated or no coated paper, transparent or non-transparent medium |
| Width of paper feeding | 250mm, 350mm | Computer hardware | main board with HTS-PRIME Z370-A: graphics card with HT%-GTX1070-08G. |
| Printing Width | 216mm, 324mm | Resolution | DPI 600 x 600 dpi or 600 x 1200 dpi DPI/rate 1200 dpi 25m /min, 2400 dpi 12.5m/min. |
| Machine weight | 3.6 tuns approimately | Printing technology | Single PASS UV ink-jet technology, DOD tenchnica grade nozzle and 4-grade grade scale. |
| Ink | Cured UV printign ink | Image Processor | RiP bund le,and synchronous printing and RIP for big data files are supported,saving RIP time |
| Color cell of printing | CMYK+W+O+V+S | Drying mode | 700W/LED/C.End dry:3KW/LED & 10KW/UV |
